Using the right adapter, you can connect the Mac Mini to any computer screen with a VGA port. The Mac Mini ships with a HDMI-to-DVI adapter but it’s only really Apple monitors which use DVI, so for a regular monitor you may need a HDMI-to-VGA or mini displayport-to-VGA connector instead. Use the Mini DisplayPort to VGA Adapter to connect your Mac to a standard analogue monitor, projector, or LCD that uses a VGA connector or cable. Review the documentation or check with the manufacturer of your monitor to make sure you're choosing the right adapter.
Apple's Mini DisplayPort adapters work with Mac models that have a Mini DisplayPort , Thunderbolt port , or Thunderbolt 2 port when using Mac OS X Leopard 10.5.6 or later:
These adapters don't work with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, which doesn't support Mini DisplayPort displays.
Hdmi To Vga Adapter For Mac Mini
Apple Mini DisplayPort to DVI Adapter
The Apple Mini DisplayPort to DVI Adapter connects a Mac that has a Mini DisplayPort , Thunderbolt port , or Thunderbolt 2 port to a display that uses a single-link DVI cable.
This adapter supports display resolutions up to 1920 x 1200.
Apple Mini DisplayPort to Dual-Link DVI Adapter
The Apple Mini DisplayPort to Dual-Link DVI Adapter connects a Mac that has a Mini DisplayPort , Thunderbolt port , or Thunderbolt 2 port to a display that uses a dual-link DVI cable.
This adapter supports display resolutions up to 2560 x 1600. To use it with a dual-link DVI display such as the 30-inch Apple Cinema HD Display, connect the USB cable from the display to the USB-A port on the adapter, then connect the USB-A cable on the adapter to the USB-A port on your Mac.

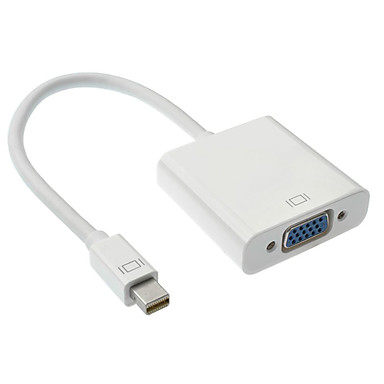

Apple Mini DisplayPort to VGA Adapter
The Apple Mini DisplayPort to VGA Adapter connects a Mac that has a Mini DisplayPort , Thunderbolt port , or Thunderbolt 2 port to display that uses a VGA cable.
This adapter supports display resolutions up to 1920 x 1200. To achieve resolutions greater than 1600 x 1200, displays with high refresh rates might require that you lower the refresh rate.
Because the VGA connection is analog instead of digital, HDCP-encrypted content might not play back, or might play back at a lower resolution.
Vga Connection For Mac Mini
Learn more
Vga Mac Mini
DVI cables that provide additional pins for an analog signal aren't compatible with the fully digital DVI port on either of the DVI adapters.
